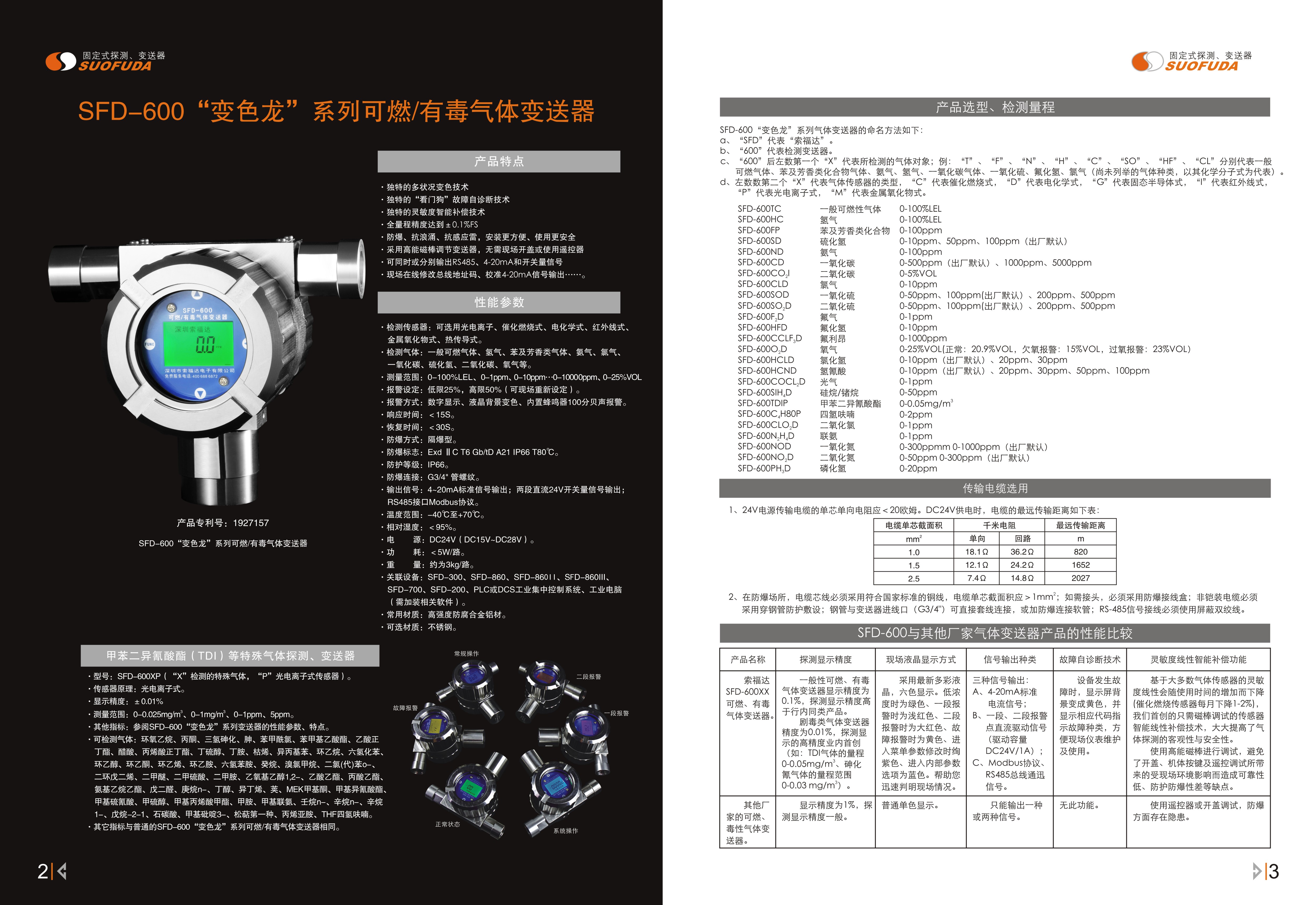

SFD-600The type of SFD - 600,combustible/toxic gas detector
Unique multi state color change technology
Unique "watchdog" fault diagnosis technology
Unique sensitivity of intelligent compensation technology
Full range accuracy of ±0.1%FS
Explosion-proof, anti surge, anti lightning, the installation is more convenient and safer to use
Using high-energy magnetic regulating transmitter, no need open cover on the site or use the remote control
Simultaneously or respectively output RS485, 4-20mA and switch signal
Online spot change bus address code, 4-20mA signal output calibration
- Product feature
- Performance parameter
- Data download
- Operation video
(1).png){kind=small}
Detection sensor: can choose photoelectric ion, catalytic combustion type, electric chemical formula, solid-state semiconductor type or infrared light type, metal oxide type, heat conduction type.
Testing gas: general combustible gas, ammonia, and aromatic gas, hydrogen, chlorine, carbon monoxide, hydrogen sulfide, carbon dioxide, oxygen, and so on.Range of measurement: Zero to one ppm、zero to ten ppm、zero to one thousand ppm、zero to hundred percent lower explosive limit、twenty-five percent volume Alarm Settings: low limit for 25% of full scale range,high limit for 50% of full scale (the user can set arbitrary, the built-in buzzer alarm, sound level 100-150 decibels) Response time: < 15 s Recovery time: < 30 s Explosion-proof way: flameproof Explosion-proof sign: Exd II CT6 Gb Level of protection：IP66 Explosion-proof connections: G3/4 pipe thread Output signals: standard 4-20 ma signal output; Two way dc 24 v switch signal output; Modbus protocol RS485 interface Temperature range：Forty degrees Celsius below zero to seventy degrees Celsius。 Relative humidity： less than Ninety-five percent Power supply：Direct Current twenty-four V（DC fifteen V to DC twenty-eight V） Power dissipation:less than five watts per Weight :about three kg/piece Associated apparatus: SFD-860 Series alarm controller、SFD-300 alarm controller、SFD Multi-functional sound and light alarm、PLC or DCS industrial centralized control system, the ordinary computer (need to add related software) Commonly used material: high strength anti-corrosion alloy aluminum Optional material: stainless steela、“SFD”on behalf of SUOFUDA；
b、“600” means detection transmitter。
c、Left after the "600" for the first "X" on behalf of gas detection by object；example: “T”、“F”、“N”、“H”、“C”、“SO”、“HF”、“CL” Represent the general combustible gas、 benzene and aromatic compounds gas、ammonia、hydrogen、 carbon monoxide、 sulfur dioxide、 hydrogen fluoride、 chlorine gas（not list the types of gas, represented by its chemical formula）。
SFD-600HC hydrogen zero percent to one hundred Lower Explosive Limit
SFD-600FP Benzene and aromatic compounds 0-100ppm
SFD-600SD sulfuretted hydrogen 0-10ppm or 50ppm or 100ppm(Factory default)
SFD-600ND ammonia gas 0-100ppm
FD-600CD carbon monoxide 0-500ppm（Factory default）、1000ppm、5000ppm
SFD-600CO2I Carbon Dioxide zero percent to five volume
SFD-600CLD chlorine 0-10ppm
SFD-600SO2D sulfurous acid anhydride 0-50ppm、100ppm(Factory default）、200ppm、500ppm
SFD-600F2D fluorine gas 0-1ppm
SFD-600HFD hydrogen fluoride 0-10ppm
SFD-600CCLF3D Freon 0-1000ppm
SFD-600O2D oxygen 0-25%VOL(normal：20.9%VOL，Less oxygen alarm: 15% VOL, peroxide alarm: 23% VOL)
SFD-600HCLD hydrogen chloride 0-10ppm (factory default), 20ppm, 30ppm)
SFD-600HCND hydrocyanic acid 0-10ppm (factory default), 20ppm, 30ppm, 50ppm, 100ppm
SFD-600COCL2D phosgene 0-1ppm
SFD-600SIH4D silane / germane 0-50ppm
SFD-600C4H80P tetrahydrofuran 0-2ppm
SFD-600CLO2D chlorinedioxide 0-1ppm
SFD-600N2H4D hydrazine 0-1ppm
SFD-600NOD nitric oxide 0-300ppm 0-1000ppm (factory default)
SFD-600NO2D carbon dioxide 0-50ppm 0-300ppm (factory default)
SFD-600PH3D phosphine 0-20ppm

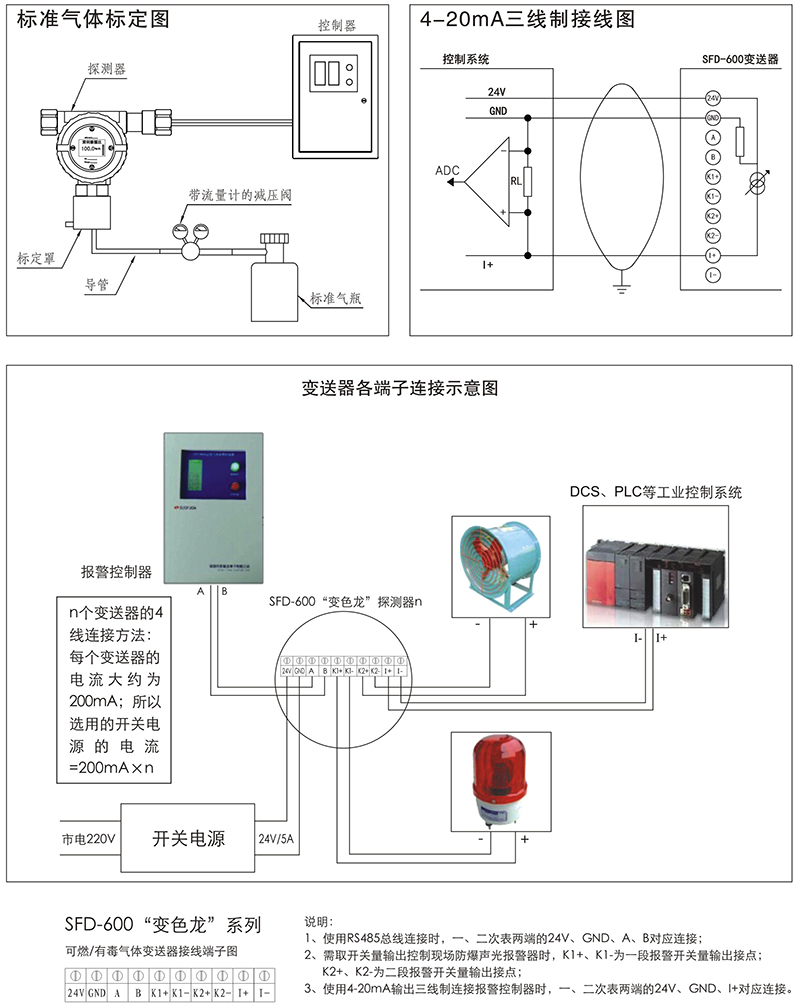

傳輸電纜選用
1、24V電源傳輸電纜的單芯單向電阻應＜20歐姆。DC24V供電時，電纜的最遠傳輸距離如下表：
| 電纜單芯截面積 | 千米電阻 | 最遠傳輸距離 | |
| mm2 | 單向 | 回路 | m |
| 1.0 | 18.1Ω | 36.2Ω | 820 |
| 1.5 | 12.1Ω | 36.2Ω | 1652 |
| 2.5 | 7.4Ω | 14.8Ω | 2057 |
2、在防爆場所，電纜芯線必須采用符合國家標準的銅線，電纜單芯截面積應>1mm2;如需接頭，必須采用防爆接線盒；非鎧裝電纜必須采用穿鋼管防護敷設；鋼管與變送器進線口（G3/4"）可直接套線連接，或加防爆連接軟管；RS-485信號連接必須使用屏蔽雙絞線。
SFD-600與其他廠家氣體變送器產品的性能比較
| 產品名稱 | 探測顯示精度 | 現場液晶顯示方式 | 信號輸出種類 | 故障自診斷技術 | 靈敏度線智能補償功能 |
| 索福達SFD-600XX可燃、有毒氣體變送器 |
一般性可燃、有毒氣體變送器顯示精度為0.1%，探測顯示精度高于行內同類產品。 劇毒類氣體變送器精度為0.01%，探測顯示的高精度業內首創（如：TDI氣體的量程0-0.05mg/m3、砷化氰氣體的量程范圍0-0.03mg/m3）。 |
采用最新多彩液晶，六色顯示。低濃度是為綠色、一段報警時為淺紅色、二段報警時大紅色、故障報警時為黃色。進入菜單參數修改時炫紫色、進入內部參數選項為藍色。幫助您迅速判明現場情況。 |
三種信號輸出： A、4-20mA標準電流信號； B、一段、二段報警點直流驅動信號（驅動容量DC24V/1A）； C、Modbus協議、RS485總線通訊信號。 |
設備發生故障時，顯示屏背景變成黃色，并顯示相應代碼指示故障種類，方便現場儀表維護及使用。 |
基于大多數氣體傳感器的靈敏度線性會隨時間的增加而下降（催化燃燒傳感器每月下降1-2%），我們首創的只需要磁棒調試的傳感器智能線性補償技術，大大提高了氣體探測的客觀性與安全性。 使用高能磁棒進行調試，避免了開蓋、機體按鍵及遙控調試所帶來的受現場環境影響而造成可靠性低、防護防爆性差等缺點。 |
| 其他廠家的可燃、毒性氣體變送器。 | 顯示進度為1%，探測顯示精度一般。 | 普通單色顯示。 | 只能輸出一種或兩種信號。 | 無此功能 | 使用遙控器或開蓋調試，防爆方面存在隱患。 |
 |
  |
 |
 |
| The type of SFD-300 gas alarm controller |
|
.jpg)
data download
SFD-600變色龍系列氣體探測器操作視頻
