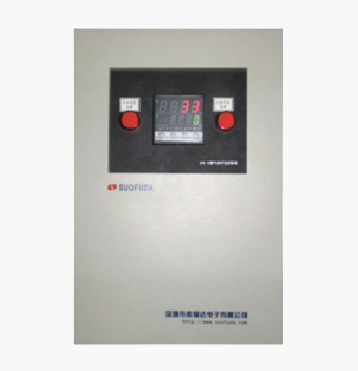

SFD-320SFD-320 Combustible , toxic gas and temperature combined alarm
Notable features: combination of flexible, easy to install, unique design, stable performance, alarm clear, high cost performance.
Alarm mode: when temperature or combustible gas exceeds the alarm settings , the detecting alarm will send out sound and light alarm, and the temperature measuring and controlling instrument can output switch quantity. .
Combustible gas sensor: semiconductor type, catalytic combustion.: K type thermocouple temperature sensor.
- Product feature
- Performance parameter
- Data download
- Operation video
Notable features: combination of flexible, easy to install, unique design, stable performance, alarm, high cost performance.
Alarm mode: when temperature or combustible gas exceeds the alarm settings , the detecting alarm will send out sound and light alarm, temperature measuring and controlling instrument can output switch quantity.
Combustible gas sensor: semiconductor type, catalytic combustion.: K type thermocouple temperature sensor.
Temperature sensor detects the temperature range: -100 ℃ to +400 ℃.
The temperature range of combustible gas sensor: -40 ℃ to +250 ℃.
The measurement precision temperature sensor ±1℃FS
The measurement precision combustible gas sensor: ±5%.
Alarm volume: less than or equal to 100 db.
Input voltage: AC220V.
Output voltage: DC24V.
Assembly specifications: two combustible gas alarm, a temperature alarm.

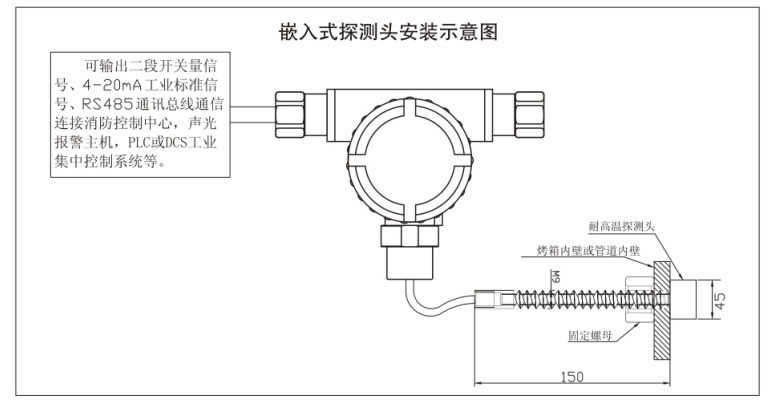

Related equipment: the temperature sensor (k thermocouple), combustible gas detector (semiconductor sensor type or catalytic combustion).
 |
 |
 |
|
| SFD-K型熱電偶 |
|
.jpg)
